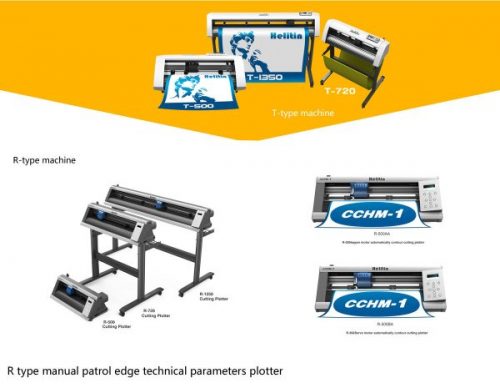

Helitin Cutting Plotter 135 Cm Folyo Kesim Makinası

Posted Under:

Helitin R serisi Helitin R1350 ac (BC) 135 cm folyo kesici plotter. Fiyatları ve özellikleri hakkında bizi arayınız.


Model R500AC(BC) R720AC(BC) R1350AC(BC)
Appearance Desktop (without stents With stents/ desktop With stents
Max cutting width 400mm(15inches) 620mm (24inches) 1250mm(49inches)
Max feeding width 500mm(19inches) 720mm(28inches) 1350mm(53inches)
Drive system stepper/servo motor
Cutting pressure 20-500g/20-1000g (stepper/servo motor)
Max cutting speed 20-800/1200mm/s (stepper/servo motor)
Mechanical resolution 0.05 mm/0.1% tolerance(Max)
Offset value 0~1.0 mm (spacing increment 0.025mm)
Mechanical resolution 0.0125mm
Software resolution 0.0125mm
Interfaces USB/RS232
Expansion port 1 Internet access
Expansion port 2 U disk
Command modes HP-GL, HP-GL/2
Compatible software Artcut/Flexisign/Flexi Auto/coreIDRAW/Singcut
Standard set(free) Helitin Blade holder(one), Blade(three)
control panel One liquid crystal display, 10 silica key, Chinese and English operation interface
Machine size (L*W*H) 656x292x263mm 876x292x263mm 1506x292x263mm
Carton size (L*W*H) 790x380x380mm 1000x380x380mm 1630x380x380mm
GW 20KG 26KG 35KG
Rated power supply 100V-240V, 50/60Hz (Auto switch)
Rated Power consumption Max 110W
Environmental Humidity 20% ~ 80% relative humidity
Working temperature 0°C~45°C/32°F~125°F
Model R500AA R500BA R720AA R720BA R1350AA R1350BA
Appearance Desktop (without stents) With stents/ desktop With stents
Max cutting width 400mm(15inches) 620mm (24inches) 1250mm(49inches)
Max feeding width 500mm(19inches) 720mm(28inches) 1350mm(53inches)
Drive system stepper/servo motor
Cutting pressure 20-500g/20-1000g (stepper/servo motor)
Max cutting speed 20-800/1200mm/s (stepper/servo motor)
Mechanical resolution 0.05 mm/0.1% tolerance(Max)
Offset value 0~1.0 mm (spacing increment 0.025mm)
Mechanical resolution 0.0125mm
Software resolution 0.0125mm
Interfaces USB/RS232
Expansion port 1 Internet access
Expansion port 2 U disk
Command modes HP-GL, HP-GL/2
Compatible software Flexi Auto Mark
Standard set(free) Helitin Blade holder(one), Blade(three)
control panel One liquid crystal display, 10 silica key, Chinese and English operation interface
Machine size (L*W*H) 656x292x263mm 876x292x263mm 1506x292x263mm
Carton size (L*W*H) 790x380x380mm 1000x380x380mm 1630x380x380mm
GW 20KG 26KG 35KG
Rated power supply 100V-240V, 50/60Hz (Auto switch)
Rated Power consumption Max 110W
Environmental Humidity 20% ~ 80% relative humidity
Working temperature 0°C~45°C/32°F~125°F
